A20 MINI
Le premier émetteur miniature de Sound Devices intègre des fonctionnalités de pointe telles que le contrôle à distance complet via l'application A20-Remote et NexLink, la modulation à longue portée, l'architecture GainForward, la plage d'accord SpectraBand de 470 MHz - 1525 MHz, l'enregistrement flottant interne de 32 bits, et plus encore. L'A20-Mini est entièrement compatible avec l'A20-RX et l'A10-RX.
Plage d'accord mondiale de 470 MHz - 1525 MHz avec l'A20-RX et l'A20-Nexus
Télécommande complète du Mini via l'application compagnon A20-Remote.
Modulation longue portée 100% numérique de pointe offrant la plus longue distance de transmission de tous les systèmes du marché.
Architecture GainForward : réglage des niveaux de gain du Mini via la commande de trim (avec une série 8) ou au niveau de l'A20-RX/A10-RX (autres mélangeurs).
Bande passante audio complète de 10 Hz à 20 kHz ; modulation et transmission RF 100 % numériques. Même gamme et qualité audio excellentes que l'A10-TX.
Enregistreur intégré 32-bit float, 48 kHz avec 64 GB de stockage pour plus de 80 heures d'enregistrement.
USB-C pour le déchargement de fichiers et, en option, conformation/conversion avec SD-Utility.
Alimentation par batteries lithium AAA ou NP-BX1 (Li-Ion) avec chargeur intégré pour NP-BX1.
Le générateur de timecode interne avec supercondensateur de secours peut être bloqué via USB-C.
Résistant à l'eau avec un facteur de forme arrondi.
CARACTÉRISTIQUES
Longest range.
The A10/A20 Wireless System delivers the longest transmission distance of any system on the market.¹ The state-of-the-art, 100% digital long-range modulation offers the same great audio quality (10 Hz – 20 kHz) as our Standard modulation scheme with a longer range for both line-of-sight and heavy multipath transmission.
SpectraBand.
SpectraBand technology delivers a tuning range of 470 – 1525 MHz in a single unit – an industry first. Experience ultimate flexibility as you find open spectrum away from the crowded UHF TV band.
GainForward.
With the Mini’s GainForward Architecture, easily set the Mini’s gain, low-cut, and limiter directly on your 8-Series. This immediate, local control of gain allows quick adaptation to changing volume levels and saves time during production.
Group remote control.
All transmitters can be powered up and down simultaneously or made to start and stop recording with a single tap from your smartphone or tablet. Use A20-Remote to create custom groups with selected transmitters or use the default all-transmitter group. You can also use groups to change RF Power, Mode, Modulation, Mute Mic, Format Media, and LED settings on multiple A20-Minis at once. The A20-Mini’s high-efficiency internal 2.4 GHz antenna ensures excellent Bluetooth range.
32-bit float recording.
The A20-Mini records in 32-bit float for an astounding >130 dB of dynamic range. This allows for audio gain decisions to be made after recording, with zero loss in headroom or noise performance.
Built-in 64 GB media.
No more SD card management – the ample-sized media stores more than 80 hours of continuous, uncompressed 32-bit float recording. Simply offload the recorded WAV files via the high-speed USB-C port to a computer.

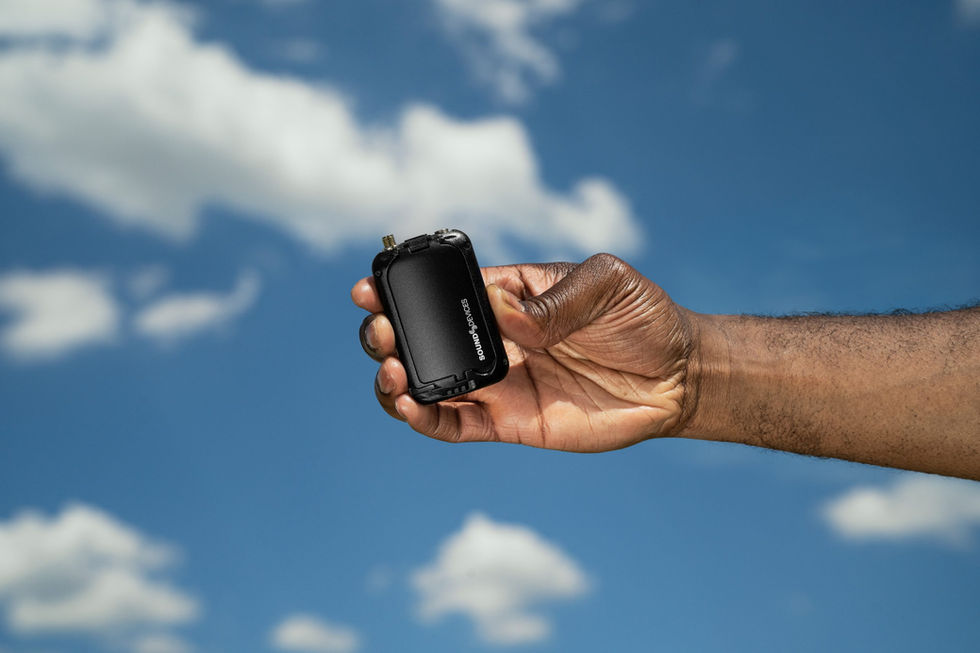

Sleek and small.
The A20-Mini digital wireless transmitter combines legendary British audio quality with the best of American design. The sleek, rounded form fits perfectly into body contours and underneath tight clothing.
Never lose time.
The Mini’s ultra-accurate 0.2 ppm internal timecode generator can be jammed via USB-C, or wirelessly via NexLink, with negligible drift over a 24-hour period.
Power away.
Use off-the-shelf rechargeable or AAA batteries – no adapter needed. 3 AAA batteries or a rechargeable Sony NP-BX1 give you the ultimate in powering flexibility. You can even recharge the NP-BX1 via the Mini’s USB-C.

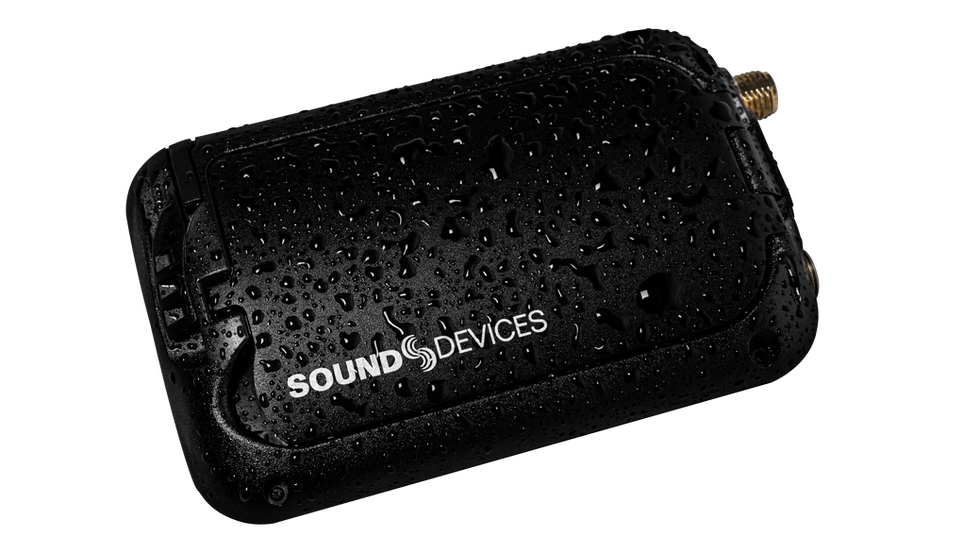

Water-resistant.
With its extensive gasketing and waterproof connectors, the A20-Mini can easily withstand water and sweat.
PowerStation-8M
Optional accessory provides easy battery charging, file transfer, and timecode jamming of up to eight A20-Minis at a time. Powered via DC (TA4) or USB-C (USB-PD).
¹ When comparing systems with same transmit power, same antennas, and same transmission frequency.
