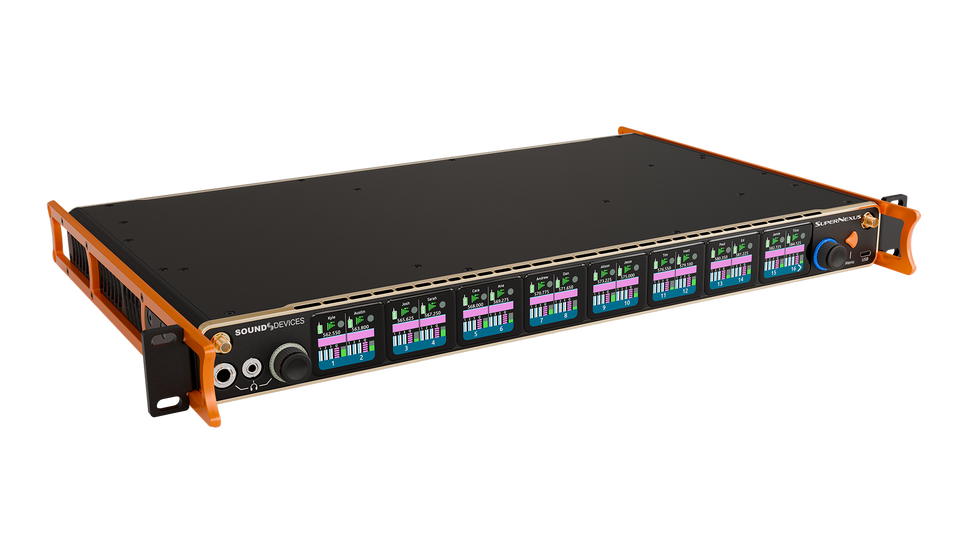

A20 SuperNexus

SKU SOUND DEVICES

Le A20-SuperNexus change la donne. Récepteur 16 canaux avec HexVersity® (diversité de 2 à 6 antennes), extensible à 32 canaux via des licences logicielles - le tout dans un rack 1U 19", l'A20-SuperNexus réduit la taille de votre kit et économise de l'espace dans votre rack. Emmenez-le en tournée sans vous soucier du réglage des bandes - il dispose d'une plage de réglage de 169 à 1525 MHz pour un fonctionnement dans le monde entier. L'A20-SuperNexus vous offre la tranquillité d'esprit grâce à son mode miroir RF pour un fonctionnement entièrement redondant.

CARACTÉRISTIQUES

  • 16 channels all with HexVersity® (2-, 3-, 4-, 5-, or 6-antenna diversity) in 1U rack space 
  • Expandable to 32 channels (all with HexVersity) in the same rack space via Software Licenses  
  • 169 – 1525 MHz tuning range for full global coverage 
  • RF Mirror Mode for full redundant operation 

    Additional Features
  • Native Dante, MADI, AES, and Analog outputs  
  • SpectraBand with 3 Tuning Bands for a total of ~72 MHz of operating bandwidth for transmitters 
  • Optional A20-Opto expansion box to add Optocore audio I/O and full redundant power supplies 
  • Simple 1-minute operation to change countries for entire system 
  • Built-in long-range NexLink® remote control of all transmitters  
  • Integrated Real Time Spectrum Analyzer (RTSA) and scanner for intuitive frequency coordination 
  • AutoAssign: automatic deployment of multiple clean frequencies in seconds 
  • Built-in 6-to-2 RF combiner for multizone events 
  • 6 network ports (2 x RJ45, 4 x SFP) configurable for Dante, Dante Redundancy, and Control 
  • Web App control from browser on any computer, smartphone, or tablet 
  • Bridging between MADI, Dante, AES, Optocore, and Analog 
  • Wide, 12.4” color OLED array with touch for control and monitoring 
  • Optical Fiber Ethernet option via two SFP slots.
  • Supports GainForward™ Architecture: No gain setting on the A20 transmitter. Adjust gain at the receiver or mixer 
  • 100% digital long-range modulation delivers the longest transmission distance of any digital system on the market  
  • RF SAW filters for excellent rejection of interference transmitters 
  • Excellent audio quality; full 10 Hz – 20 kHz audio bandwidth 
  • BNC timecode input for auto timecode sync of transmitters over NexLink 
  • Three BNC antenna input pairs, each compatible with passive, bias-powered, and smart antennas. Configurable for HexVersity or combiner modes
  • Cascade out option on rear BNCs for cascading to other receivers 
  • Automatic Antenna zero loss loop through in the event of power loss for redundant operation 
  • Front-panel 3.5 mm and ¼” headphone outputs 
  • USB-A and USB-C ports for thumb drives, keyboards, transmitter pairing, and timecode syncing Support for USB hubs 
  • PoE+ output for powering external PoE+ powered device, including the A20-Outpost-NL

FICHES TECHNIQUES

Fiche technique & Accessoires
